CR oil seal (chlorinated rubber oil seal) is a sealing element made of chlorinated rubber (CR) material, which is widely used in mechanical equipment, especially for sealing needs in high temperature, high load and harsh environment.
CR oil seal (chlorinated rubber oil seal) is a sealing element made of chlorinated rubber (CR) material, which is widely used in mechanical equipment, especially for sealing needs in high temperature, high load and harsh environment.

Product
Description

Specification

parameter

Production
Process

type

Application
Scenario

Features

01.

Product
Description

CR oil seal (chlorinated rubber oil seal) is a sealing element made of chlorinated rubber (CR) material, which is widely used in mechanical equipment, especially for sealing needs in high temperature, high load and harsh environment. CR oil seal has excellent oil resistance, wear resistance, oxidation resistance and aging resistance, which can effectively prevent oil leakage, and prevent external pollutants such as dust and moisture from entering the equipment, thereby protecting the normal operation of the equipment. It is commonly used in transmission shafts, hubs, gear boxes and other parts in automobiles, engineering machinery and industrial equipment to provide long-lasting and reliable sealing effects.

02.

Specification

Material Chlorinated rubber (CR)
Color Black (other colors can be customized upon request)
Size Customized according to the equipment shaft diameter and installation space requirements, common sizes range from 20mm to 500mm
Temperature range -40℃ to +150℃ (some models can withstand high temperatures up to +180℃)
Temperature resistance With good high temperature resistance, suitable for medium and high temperature environment
Wear resistance Excellent wear resistance, suitable for long-term operation and high-load work
Customized Design Size, material, sealing lip design, etc. can be customized according to customer needs
03.

parameter

Inner diameter range

Customized according to the equipment shaft diameter, common inner diameter range is 10mm to 500mm

Outer diameter range

Designed according to the equipment housing or installation location

Thickness range

Common thickness is 5mm to 15mm, customization is supported

Operating temperature

-40℃ to +150℃ (high temperature type can withstand high temperature up to +200℃)

Applicable media

Lubricating oil, hydraulic oil, gear oil, grease, etc.

Rotation speed

Suitable for medium and high speed rotation, up to 20m/s

Pressure resistance

Common pressure resistance performance is 1MPa to 10MPa, which can be customized according to needs

04.

Production
Process

Metal frame manufacturing

Use high-strength metal materials (such as stainless steel or carbon steel) to make the metal frame of the oil seal to provide support for the oil seal.

Rubber molding

The rubber material (such as NBR, FKM, etc.) is processed into a sealing lip through injection molding or pressing technology to ensure the sealing effect.

Vulcanization

The vulcanization process improves the high temperature resistance, oil resistance, and aging resistance of rubber materials, ensuring stability in high temperature and high pressure environments.

Finishing and assembly

The sealing lip, metal frame and oil return groove are processed carefully to ensure the sealing and installation accuracy of the product.

Quality Inspection

Each oil seal undergoes strict quality testing, including temperature resistance, pressure resistance, sealing, etc., to ensure its stable and reliable performance.

Packaging and delivery

After passing the quality inspection, the products will be packaged to ensure safety during transportation.

Standard TA oil seal

Suitable for sealing conventional equipment, providing stable oil sealing effect

Double lip type TA oil seal

Designed with double sealing lips to increase sealing performance, prevent oil leakage and block external contaminants from entering

High temperature resistant TA oil seal

Made of high temperature resistant materials, suitable for sealing requirements in high temperature working conditions

Customized TA oil seal

Customize size, material, sealing lip design, etc. according to customer needs to adapt to different working conditions and equipment requirements

type

06.

Application
Scenario

Automotive Industry

Used for sealing of automobile drive shafts, wheels, differentials and other parts to prevent oil leakage and protect internal systems

Industrial Equipment

Such as the sealing of gear boxes, hydraulic pumps, compressors and other equipment to ensure that lubricating oil does not leak

Engineering Machinery

Such as drive shaft seals for excavators, bulldozers and other equipment to protect transmission systems and bearings

Shipping industry

Used for ship gearbox and transmission shaft seals to retain oil and prevent external pollutants from entering

Agricultural machinery

Sealing systems for equipment such as tractors and harvesters

Mining machinery

Such as the sealing of mining vehicles and mining equipment to ensure the normal operation of the equipment

07.

Features

High pressure resistance

Able to withstand working pressure up to 10MPa, suitable for high-load, high-speed rotation environments

High temperature resistance

The use of high temperature resistant materials can adapt to high temperature environments and ensure the stable operation of the oil seal under harsh working conditions.

Excellent sealing

Precision-designed sealing lip prevents lubricating oil leakage and effectively blocks the entry of external pollutants

Strong wear resistance

Excellent wear resistance, long-term high-load working can maintain a long service life

Resistance to aging

Made of high-quality anti-aging rubber material, it can resist the effects of environmental factors such as ultraviolet rays and oxidation.

Lips design

Some models adopt double lip design to enhance the sealing effect, prevent oil leakage, and adapt to more severe working conditions

Wide applicability

Applicable to hydraulics, gearboxes, automotive drive systems, industrial equipment and other fields

Easy installation

Reasonable design makes installation and replacement easier, reducing equipment maintenance time and cost

After-sales guarantee

1

 /

7

Service response speed
Technical Support and Guidance
Product Repair and Replacement
Spare Parts Supply
Regular Inspections and Maintenance
Customer Training and Education
Global After-Sales Service Network
We promise to respond quickly within 24 hours after customers submit after-sales service requests. Whether it is product failure, technical consultation or quality issues, customers can get timely support from our team. The after-sales service platform we provide supports 24-hour communication, ensuring that customers can get in touch with us at any time.
We provide comprehensive technical support, including product installation, debugging, operation training, and troubleshooting. Our experienced team offers professional advice and solutions to ensure optimal product performance. For complex issues, we also provide remote diagnostics and on-site support.
For products within the warranty period or those with quality issues, we offer free repair or replacement services. Our repair services include fault diagnosis, part replacement, and system debugging to restore the product's original performance and minimize downtime.

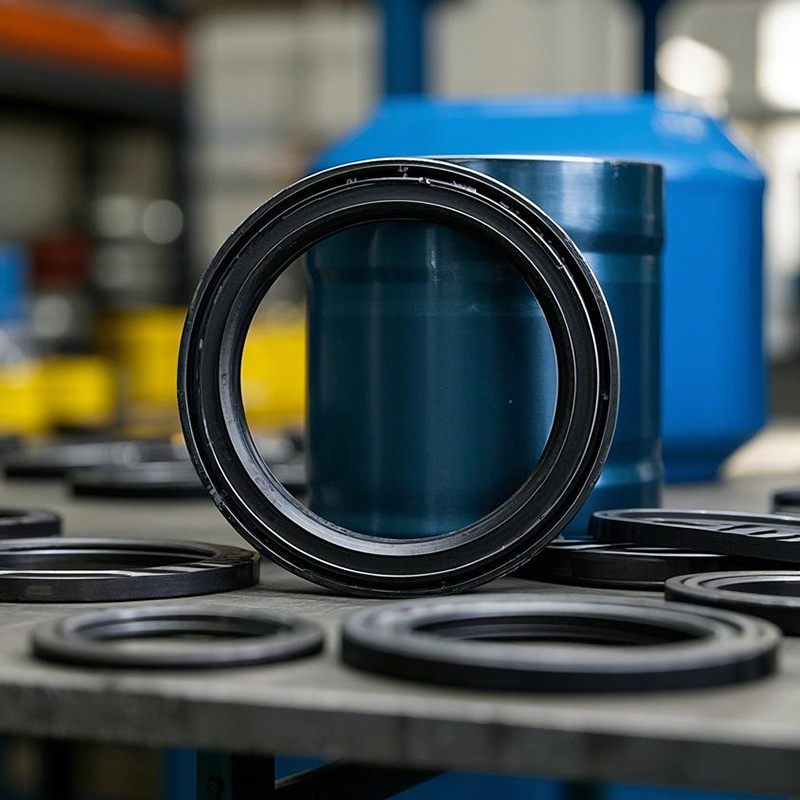

We offer a full range of spare parts to ensure any component damage is promptly addressed. All parts meet factory standards and undergo strict quality testing to guarantee high quality and long-term stability.
We provide scheduled inspections and maintenance services based on customer needs. This includes performance assessments, component checks, seal inspections, and maintenance recommendations to prevent downtime and ensure optimal product performance.
To ensure efficient operation and maintenance, we offer professional training services. The training covers proper product use, daily maintenance, and handling common issues. We also provide regular workshops and online educational resources to help customers improve efficiency and reduce maintenance costs.
We have after-sales service centers in multiple countries and regions to meet the needs of customers worldwide. Our international service network offers local support, efficient logistics, and technical consultation to ensure seamless product integration and timely response globally.
